Starfoil 790

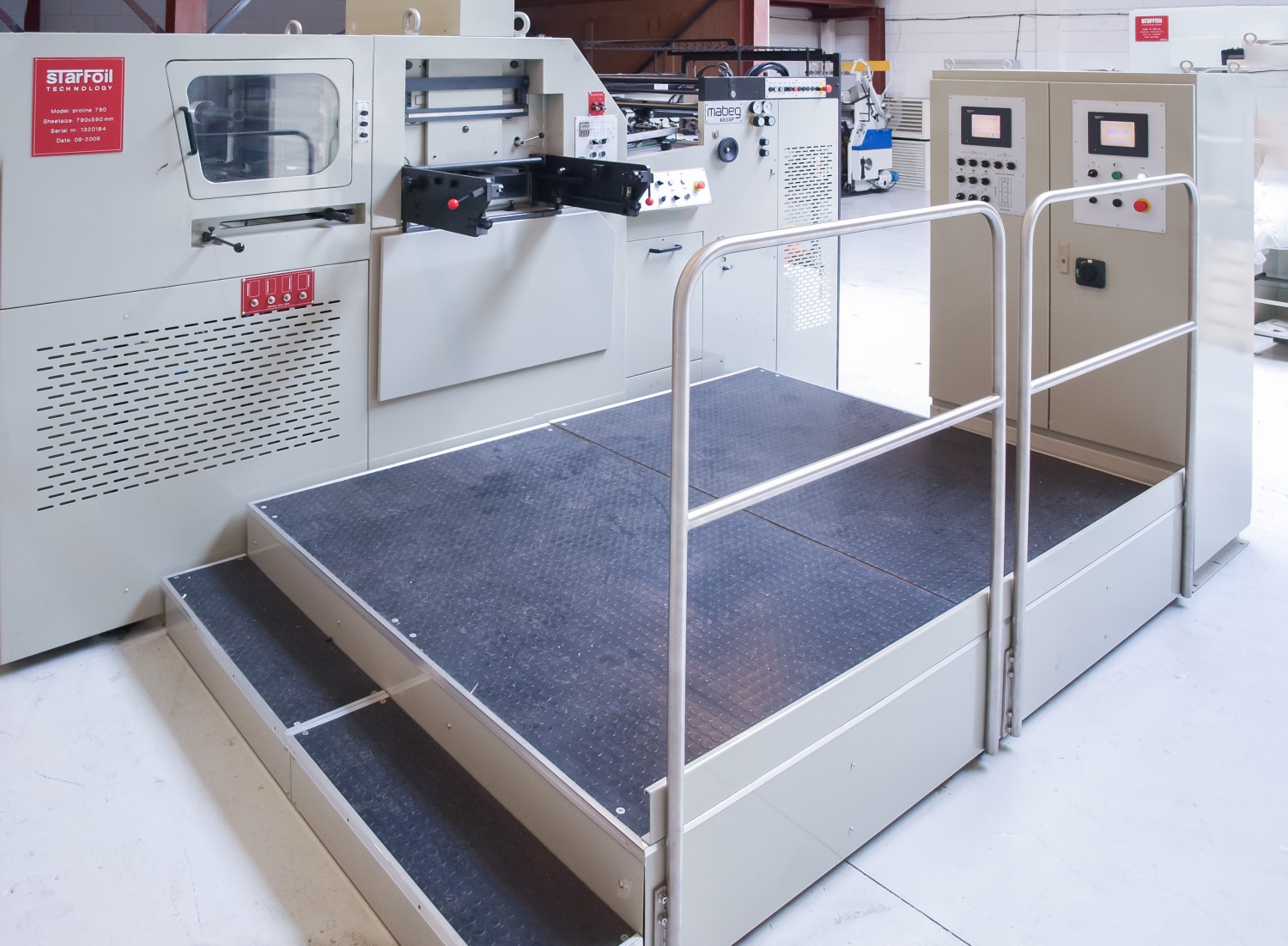

Automatic foil stamping and die cutting press with Mabeg Feeder. Sheet size: 790 x 560 mm.

Description

Machine – main characteristics

Sheet size: 790 x 560 mm

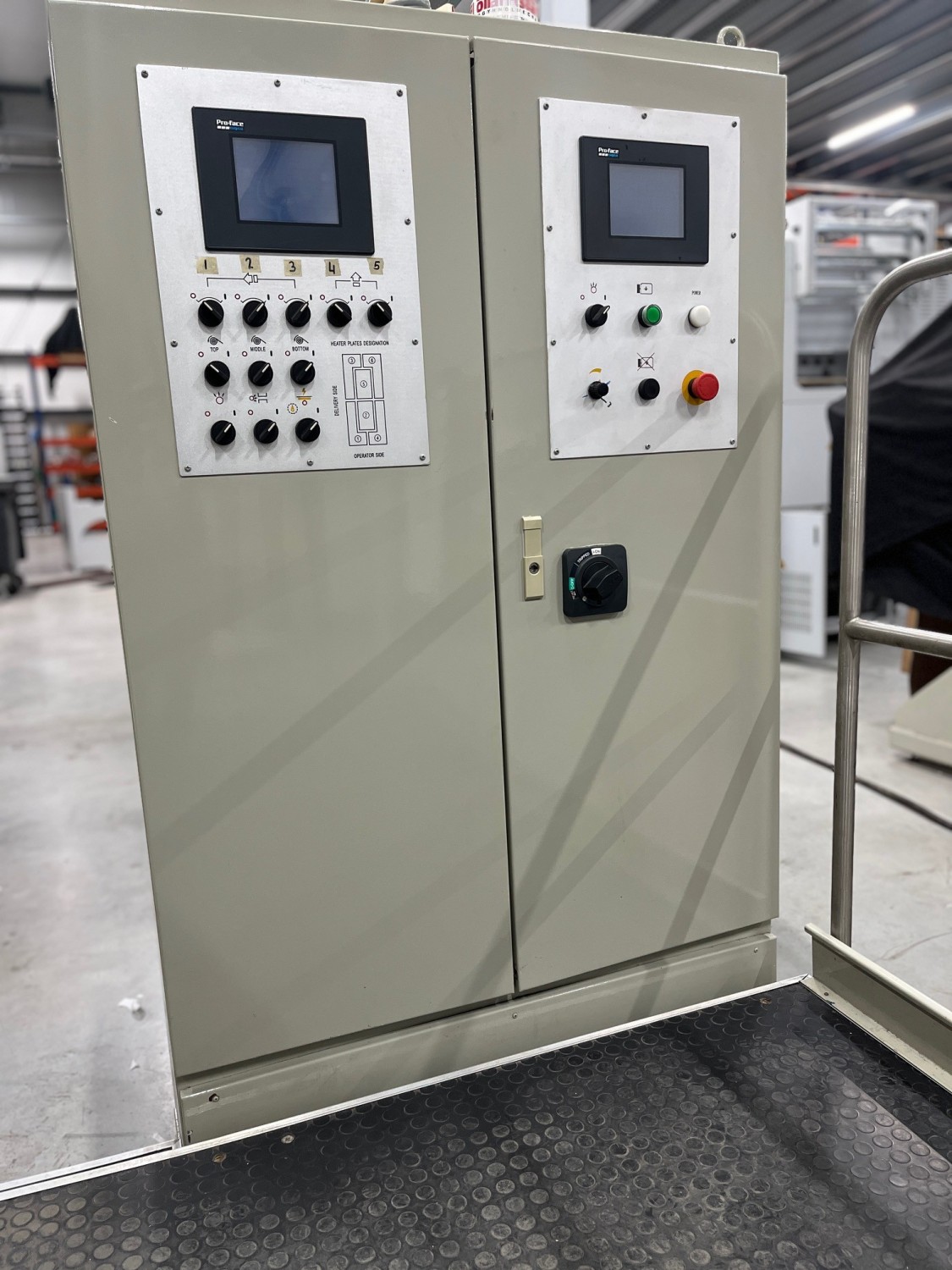

Two 6inch operator panels, one for controlling foil system and one for controlling the machine
Fully automatic oil system
Self diagnosis system
Precise, controllable and consistent pressure
Fitted with Mabeg vacuum feeder for ultimate stable feeding
Complies to CE norm
Transmission by means of A/C frequency converter, start-up and stop controlled by air clutch.
Machine controlled by PLC.
Independent temperature control for each heating zone.
Non-stop feeding and delivery. The machine is equipped with 3 longitudinal and 2 transversal foil pulling shafts.

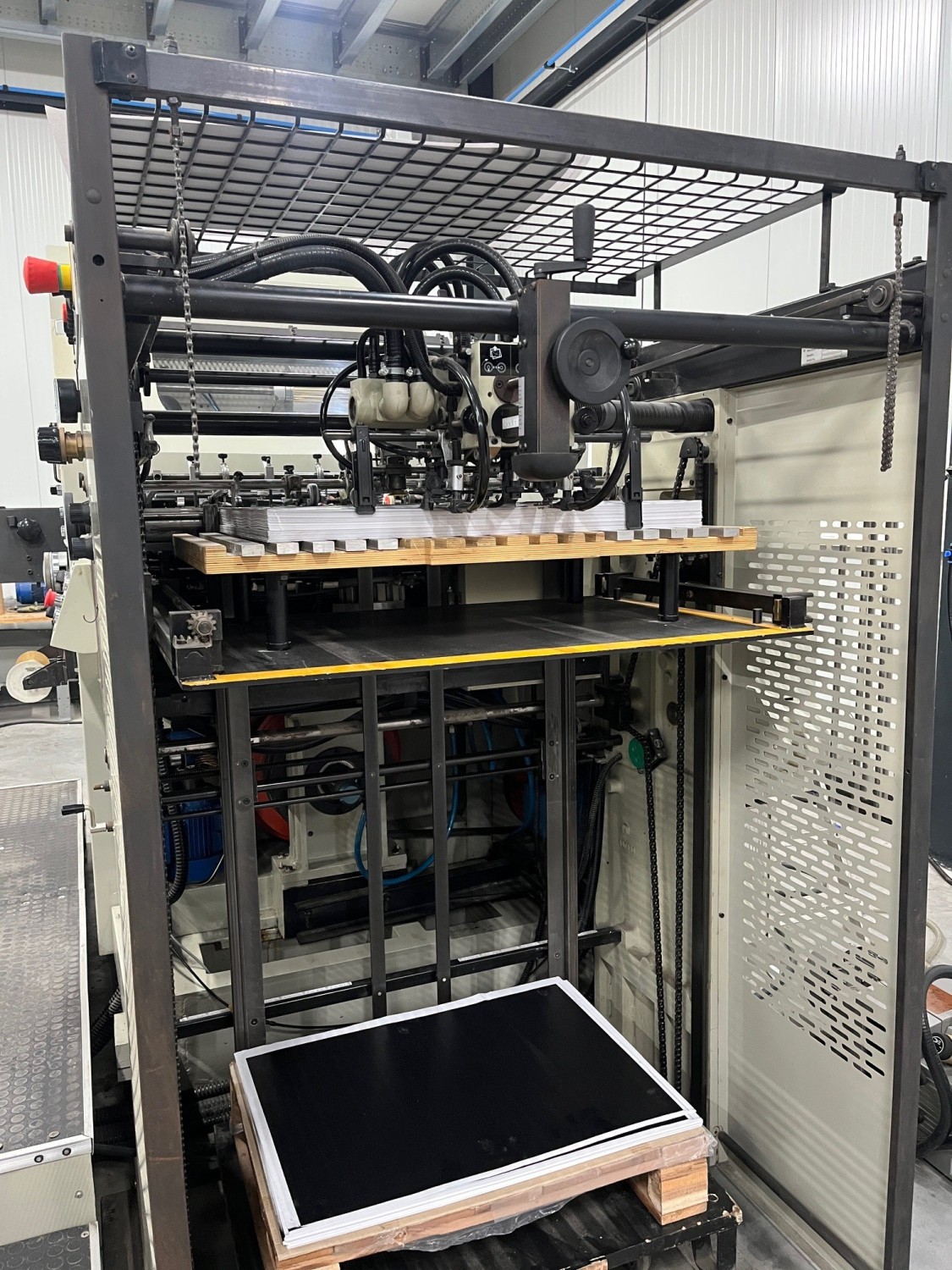

Feeder section

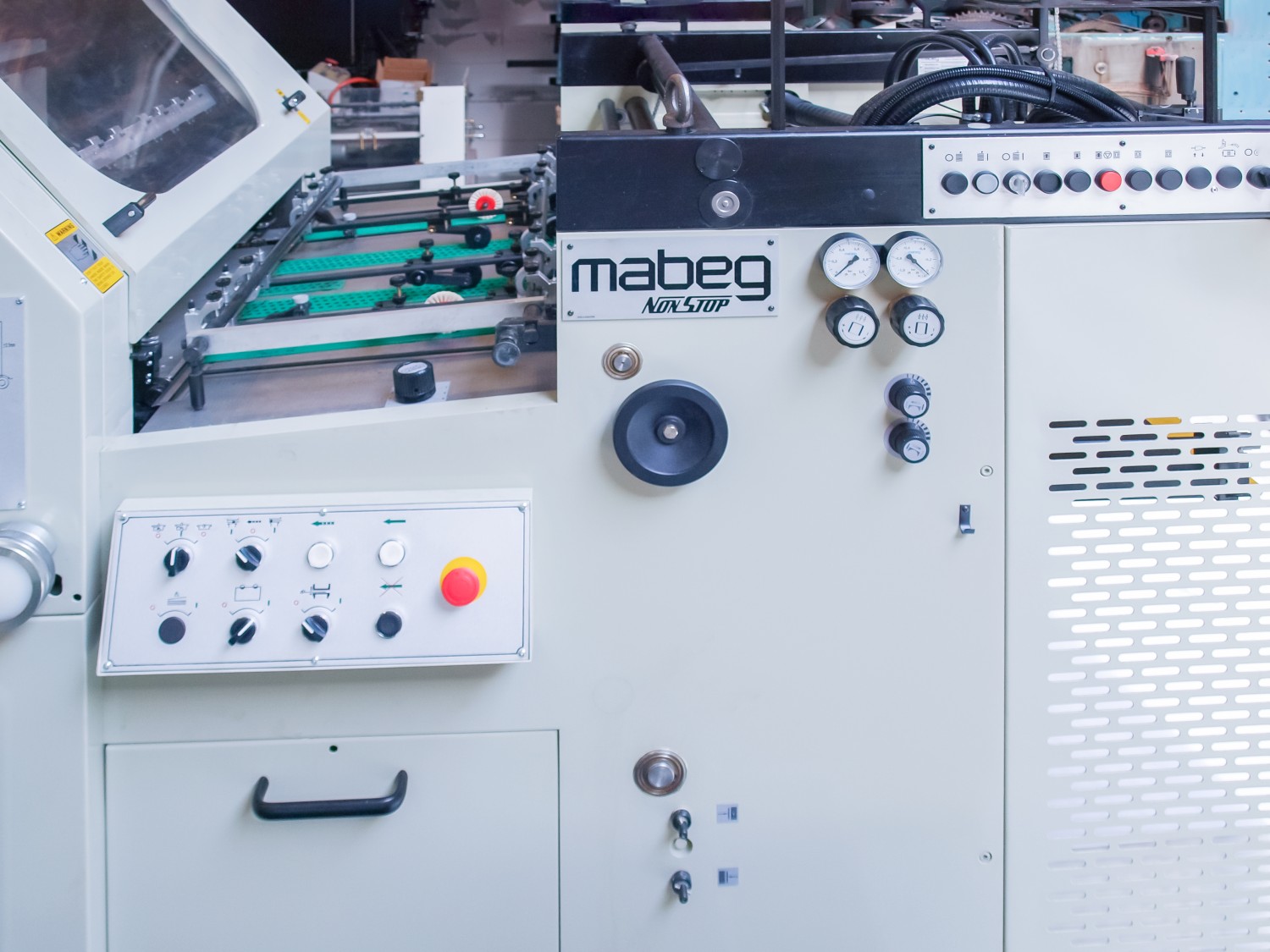

Mabeg feeder with vacuum belt system. The Mabeg feeder offers quick set up and is excellent for light weight paper as well as board at maximum speeds
Paper range from 80 grs. - 1.5 mm
Non-stop feeder system is standard and offers efficiency for long production runs
Double sheet detection
Push and pull side lays
Electronic side lay control (optional)
Two electronic front lay controls
Vacuum pump for feeder included

Delivery section
Automatic non-stop delivery is standard

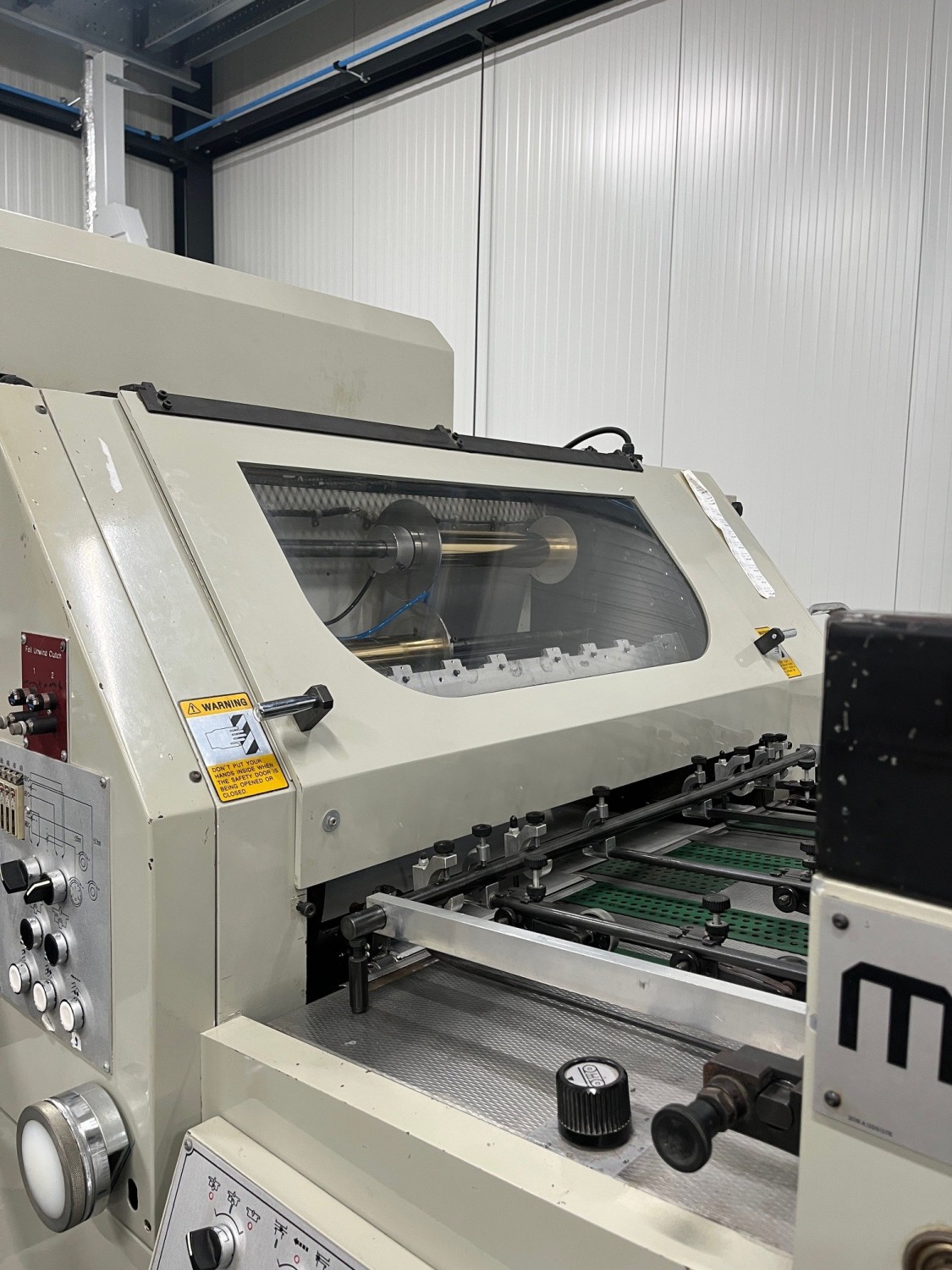

Foil section

Requirements

Power requirement 26 kW
The machine requires air supply by means of a compressor, which is not included in the price of this machine quotation. On request we can make you a separate quotation for this required compressor.
