Pro Line Victoria cylinder

hot-stamping cylinder press. Sheet size: 730 x 1040 mm.

The Starfoil Victoria cylinder is designed to foil and emboss in one pass. With a print area of 730x1040 mm, it will run at maximum speed up to 3000 sheets per hour. Advanced technical electronics, including DC drive, give precise variable speed with electronic pile lift for accurate feeding and ease of raising and lowering the pile.

Safety features surpass current regulations and provide detailed information by means of fault indicators enabling the operator to isolate a specific problem.
Additionally, the Victoria delivery is totally open, for continual inspection whilst the machine is running.
The foil tray has been designed for a speedy change-over and versatility. A simple foil change is achieved by locating plates in the tray so that one reel can be changed at a time and then replaced in exactly the right position.

A double bar can also be placed in the tray for overlapping foil. There is a safety sensor on the tray to prevent the machine operating if it is inadvertently left open.
Each foil drive can pull foil to an accuracy of 0.1 mm running at any speed, and is pulled by processor controlled stepper motors, achieving perfect registration.

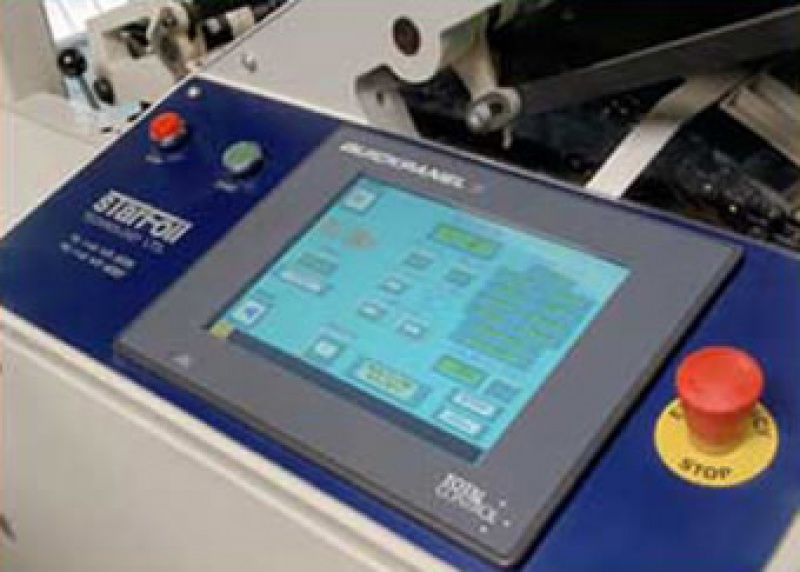

All programming is carried out via an operator control panel comprising digital screen and keypad, alternatively touch screen controls are available.

Temperature control is split into six individually controlled heater zones on a fully adjustable bed.
There is an option of a removable top plate so that jobs can be set up off the machine, drastically reducing down tine when setting up new jobs.
Starfoil Pro Line Victoria cylinder press
.Print specification
Speed 3000 IPH
Maximum sheet size 730 x 1040 mm
Minimum sheet size 290 x 400 mm
Foiling area 720 x 1038 mm
Feeder pile height 500 mm
Delivery pile height 850 mm
Grip distance 5 mm
Maximum sheet thickness 0.65 mm
.Machine Specification
Length 5.4 mm
Width (incl. preloader) 4.35 m
Height (feeder wheels up) 2.19 m (2.8m)
Total power 30 kW, 380V - 415V, 3 phase plus neutral & earth
PLC control Yes
Electronic speed control Yes
Electronic pile lift Yes
Touch screen controls Translated according to customer's specification
Diagnostic modem Yes
.Foil specification
Maximum foil diameter 125 mm (610 m) @ 12 microns
Minimum distance between foil rolls 0.5 mm
Number of foil units 2 standard; 3 -4 optional
Number of lengths per program 3, more optional
Number of pulls per length 99
Foil bar 2
Foil tray 1
Pull resolution 0.1 mm
Hologram registration system Up to 4 with stepping facilities
.Bed specification
Heated zones 6
Adjustable zones (optional) 6
Sensors per zone 1
Maximum adjustment 1 mm
Mamimum temperature 220 C
Die height 6.35 mm or 7 mm
